Description
Used of determining softening point of bituminous materials by ing and ball method.
The softness of bitumen depends, amongst other factors, on the temperature of the substance, where, as the temperature is raised, the softness of the bitumen increases.

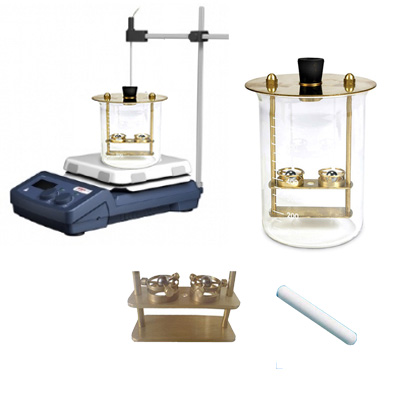

supplied complete with a hotplate with magnetic stirrer, 2 steel balls, ball centering guide, 2 brassrings, 600 ml glass beacker and max. 110 °C thermometer.
Technical Specification
| Product Code |
Product Name |
Dimensions (cm) |
Weight(kg) |
Power Supply |
| HR-AS2250 |
Ring and ball test set |
21x31x40 |
4,5 |
220 V, 50-60 Hz, 1 ph |
Spare Parts & Accessories:
| Product Code |
Product Name |
Dimensions (cm) |
Weight(kg) |
Power Supply |
| HR-G1025/A |
Analog Magnetic Stirrer Heater |
21x31x10 |
2,8 |
230 V, 50-60 Hz, 1 ph |
| HR-G2250/1 |
Steel Ball |
– |
– |
– |
| HR-G2250/2 |
Ball Centering Guide |
– |
– |
– |
| HR-G2250/3 |
Brass ring, 2 pieces |
– |
– |
– |
| HR-G0007 |
Galss Beacker, 600 ml |
9x9x12,5 |
0,25 |
– |
| HR-G0391 |
Galss Thermometer; max 110°C |
3x3x30 |
0.1 |
– |
