Description

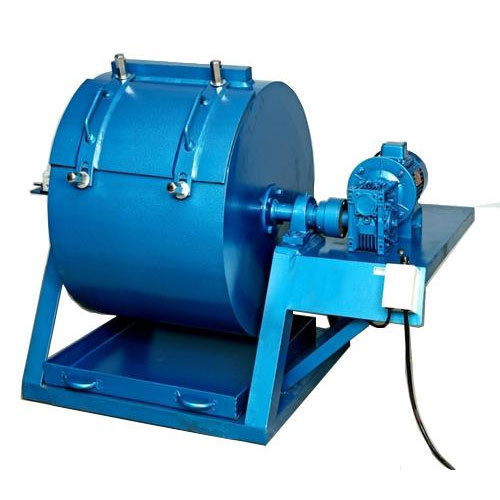

Los angeles abrasion machine is used for dissemination of aggregates resistance to fragmentation. The machine consists of an electric control unit and rolled steel drum having an inside diameter of (711 ± 5) mm and internal length (508 ± 5)mm. The drum is rotated at a speed of between 31 and 33 r.p.m.
The machine is equipped with automatic counter, which allows stopping when the preset number of revolutions is completed. They are is tray supplied with machine for easy discharge of specimen.
Los angeles device with sound proof (security) cabinet is available. Manufactured from sheet steel, internally lined with sound-proofing material for noise reduce, conforming to CE safety directives. when opening the cabinet’s door during los angeles working, a micro switch automatically stops the rotation of the drum.
Locking mechanism also available as option and (should be factory installed) should be ordered separately. locking mechanism of the drum helps the user when filling the samples and lock the door nuts.
Abrasive charges should be ordered separately according to the standards.
STANDARDS: EN 1097-27, 12697-17, 12697-43, ASTM C131, AASTHO T96
Technical Specification:
| Product Code | Product Name | Dimnsions (cm) | Weight (Kg) | Power Supply |
|---|---|---|---|---|
| HR-A0750 | Los Angeles Arasion Machine | 100x90x100 | 400 | 220 V, 50 Hz, 1 ph |
| HR-A0750,60 Hz | Los Angeles Arasion Machine | 100x90x100 | 400 | 220 V, 60 Hz, 1 ph |
| HR-A0755 | Los Angeles Arasion Machine with Safty Cabinet | 110x115x125 | 500 | 220 V, 50 Hz, 1 ph |
| HR-A0755. /60 Hz |
Los Angeles Arasion Machine with Safty Cabinet | 110x115x125 | 500 | 220 V, 60 Hz, 1 ph |
Sapre Parts & Accesories:
| Product Code | Product Name | Dimnsions (cm) | Weight (Kg) |
|---|---|---|---|
| HR-A0765 | Locking Machanism | – | – |
| HR-A0760 | Set of 12 Abrasive Charges, ASTM, UNI, CNR | Aprox 0 4,7 | 0,390-0,445(Total 5 ± 0.025) |
| HR-A0761 | Set of 11 Abrasive Charges, EN | Aprox 0 4,5 – 4,9 | 0,400-0,445(Total 4.690 ± 4.860) |
